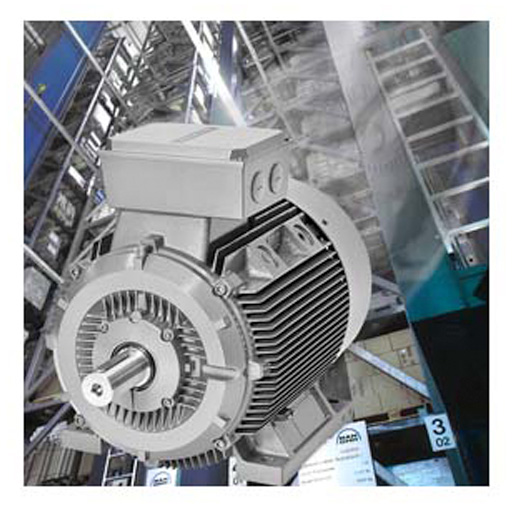

Motor With High Effeciency IE2
Product Details
-
Date
October 3, 2014
- Category
- SIMOTICS GP – Aluminium series 1LA9 and 1LE1001
- SIMOTICS SD – Cast-iron series1LG6 and 1LE1501
| Category | Motors with High Efficiency IE2 |
| Series version | Aluminum series 1LE1001 |
| Cooling | Self-ventilated (IC 411) or with order code F90 forced-air cooled without external fan and fan cover (IC 416) |
| Degree of protection | IP55, optionally IP56 or IP65 |
| Insulation | Thermal class 155 (F) |
| Utilization | Thermal class 130 (B) |
| Number of poles | 2, 4, 6, 8 |
| Frame sizes (FS) | 80 M … 160 L |
| Rated output at 50 Hz | 0.37 … 18.5 kW |
| Synchronous speed | 750 … 3600 rpm |
| Rated torque at 50 Hz | 2.6 … 108 Nm |
| Efficiency | High Efficiency IE2 |
