High Torque Planetary Gearboxes

High Torque Planetary Gearboxes

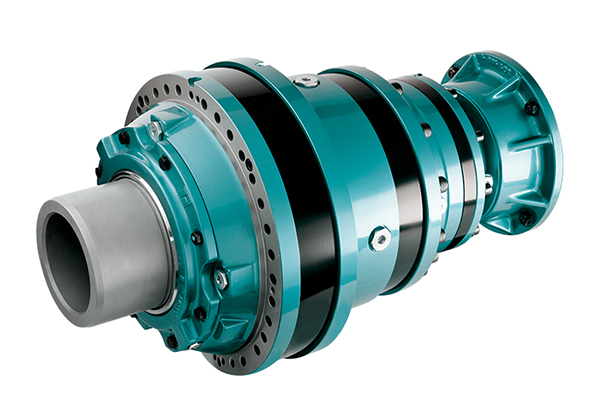

S-Series Planetary Gearboxes

Brevini “S Series” is the best solution for all applications requiring high torque with minimum dimensions, on fixed industrial equipment and heavy self-propelled machines. This planetary solution offers a substantial improvement in terms of space and weight.

The S series is also available as High Power version, linking the performance of Brevini’s planetary technology with the high quality and reliability of PIV Posired series of right-angle gearboxes: a solution that is more efficient, quieter, more compact and offers a better price / performance ratio compared to traditional gear units.

Features:

• 13 harmonically developed sizes, from 34,000 Nm to 2,500,000 Nm nominal torque.
• In line and right angle execution up to 6 reduction stages.
• Output versions: female splined, hollow cylindrical for shaft-mounting, male cylindrical and male splined shaft.
• Input versions: male input shaft, electric and hydraulic motors arrangements, possibility of multidisc brakes.
• Available a wide range of input and output accessories.
• Color: RAL 5009

Large Gear

Our Core Competency is the passion for manufacturing large precision gears for any industrial application.

Brevini Gear Systems facility is able to manufacture and heat treat large-diameter, high-precision gearing.  We have state of the art equipment for gear shaping, grinding, heat treatment as well as measurement and inspection, so it’s natural that our forte is large, high-precision gear sets. Likewise, we have one of the largest test stands in the US, rated at over 6 megawatts: we definitely have the capability of testing large gearboxes.

Features:

• Large, high-precision Internal Ring Gears
• Planet and Helical Gears, Sun Pinions, Large Gear shafts
